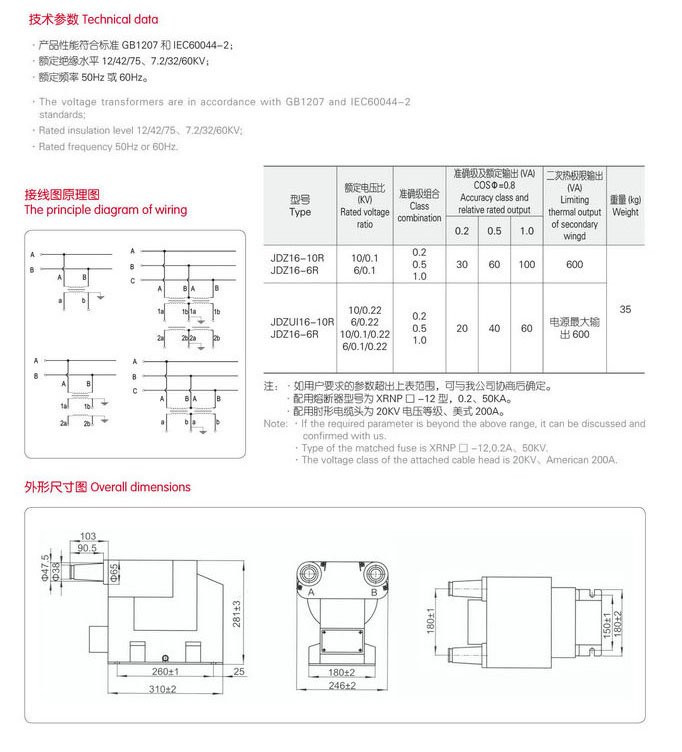

一、技術參數
產品性能符合標準GB1207和 IEC60044-2;
額定塊緣水平12/42/75、7.2/32/6OKV;
額定頻率50Hz或 60Hz。
The voltage transformers are in accordance with GE1207 and IEC60044-2standards；
Rated insulation level 12/42/75、7.2/32/6OKV；
Rated frequency 5oHz or 6DHz
|
型號
Type
|
額定電壓比 (kv)
Rated voltage ratio
|
準確級次組
Class combination
|
準確級及額定輸出(VA)
COSΦ=0.8 Accuracy class and relative rated output
|
二次熱極限輸出（VA)
Limitingthermal output of secondary wingd
|
重量 (kg)
Weight
|
|
0.2
|
0.5
|
1.0
|
|
JDZ16-10R JDZ16-6R
|
10/0.1 6/0.1
|
0.2 0.5 1.0
|
30
|
60
|
100
|
600
|
35
|
|
JDZUI16-10R JDZ16-6R
|
10/0.22 6/0.22 10/0.1/0.22 6/0.1/0.22
|
0.2 0.5 1.0
|
20
|
40
|
60
|
電源最大輸 出60O
|
注:
如用戶要求的參數超出上表范圍,可與我公司協商后確定。
配用熔斷器型號為XRNPO-12型,0.2、5OKA。
配用時形電纜頭為20KV電壓等級、美式200A。
Nate:
If the required parameter is beyond the above range, it can be discussed and confirmed with us.
Type of the matched fuse is XRNP-12,0.2A、5OKV.
The voltage class of the attached cable head is .20KV.American 20OA.
二、接線圖原理圖

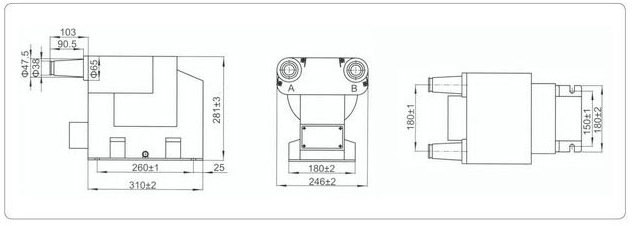

三、外形尺寸圖
